NPN digital transitor test

Sometimes this type of transistor is called resistor equiped transistor (RET)

test schematic setups

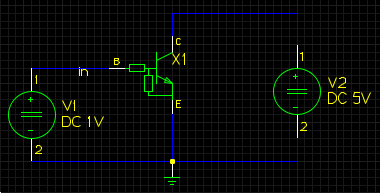

test schematic
 Test for the amplifier characteristics of the transistor.
  1. Input current over input voltage
  2. output current over input voltage.
This simulation is done at different temperatures and plotted in two linear plots.

postprocessing tests

The input current have to be lower than 1A. This test will catch transistors without any resistor at the input.

example test results

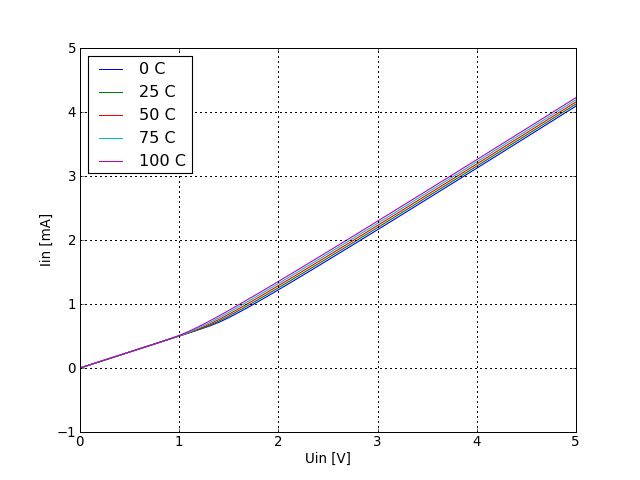

Input current graph
Parameters: V_CE = 5V

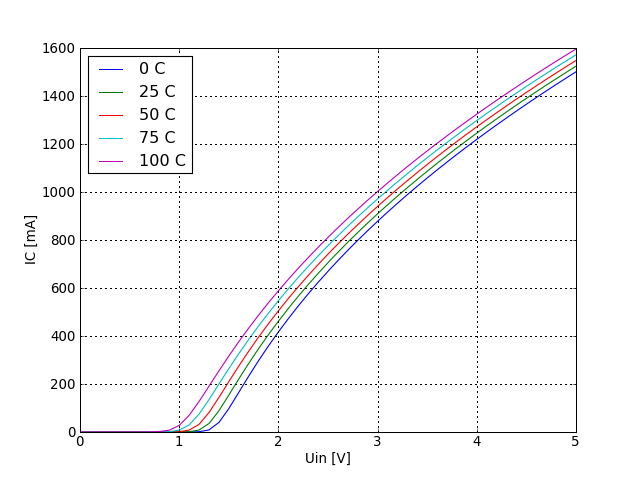

Input current as a function of input voltage at different temperatures.		 V_CE voltage graph
Parameters: V_CE = 5V
Collector current as a function of input voltage at different temperatures.
