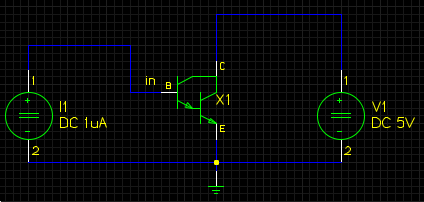

Test for the amplifier characteristics of the darlington transistor.
Note: there are numeric errors for small collector currents. |
|

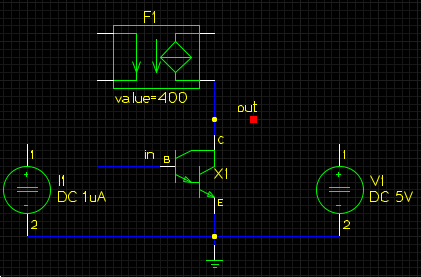

Test for the switching characteristic of the darlington transistor. It simulates the
base and collector voltage for a fixed ratio of the base and collector current.
The plotted functions are:
|

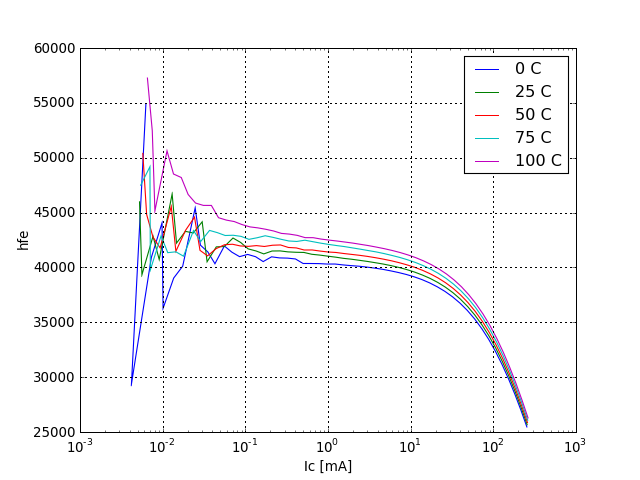

Parameters: V_CE = 5V DC current gain as a function of collector current at different temperatures. |

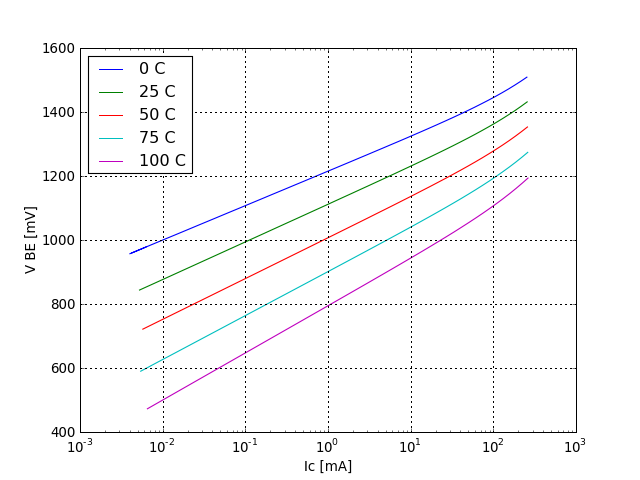

Parameters: V_CE = 5V Base-emitter voltage as a function of collector current at different temperatures. |

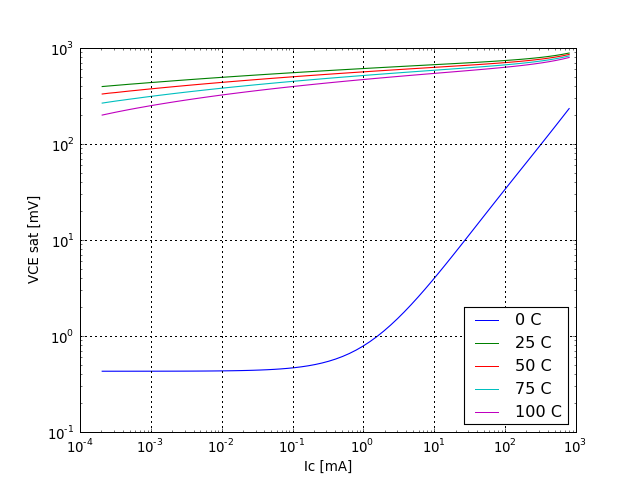

Parameters: IC/IB = 400 Collector-emitter saturation voltage as a function of collector current at different temperatures. |

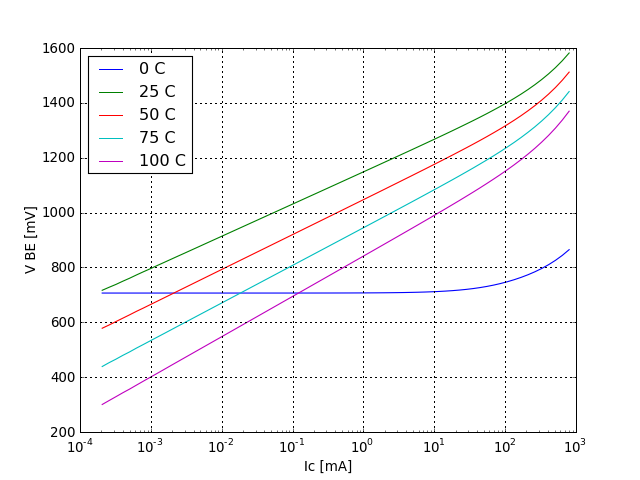

Parameters: IC/IB = 400 Base-emitter saturation voltage as a function of collector current at different temperatures. |
