PNP transistor with base resistor test

This type of transistor is similar to a pnp digital transistor, but the resistor between base and emitter is missing.

test schematic setups

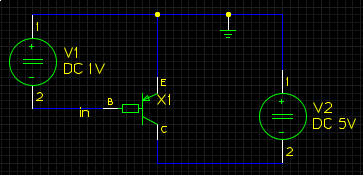

test schematic
 Test for the amplifier characteristics of the transistor.
  1. Input current over input voltage
  2. output current over input voltage.
This simulation is done at different temperatures and plotted in two linear plots.

postprocessing tests

This test has currently no postprocessing test. Use your eyes to catch any error.

example test results

DC current gain graph
Parameters: V_CE = 5V

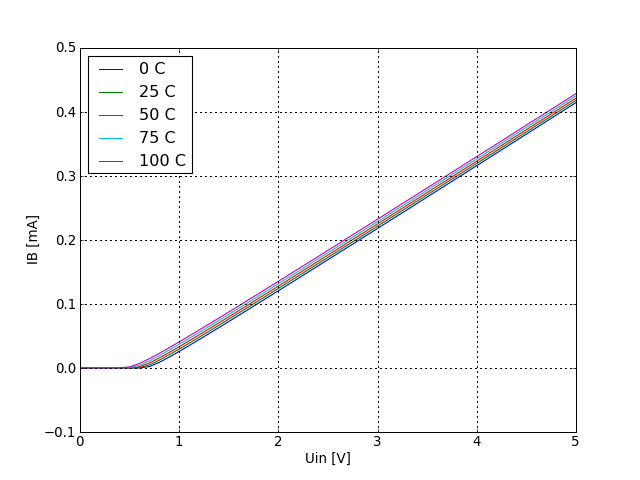

Base current as a function of input voltage at different temperatures.		 VBE voltage graph
Parameters: V_CE = 5V

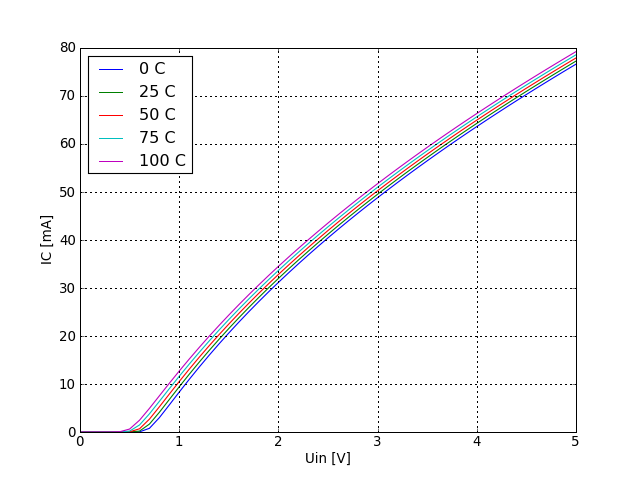

Collector current as a function of input voltage at different temperatures.
